R82 Manatee Bath Chair Size 3 [882003]

Regular price $2,499.00

The Manatee is constructed to provide both caregivers and users a wonderful bathing experience.

The bathing chair is designed to place the user in exactly the right sitting position. The depth of the seat can be adjusted allowing the bathing chair to grow with the child and provides many years of use. The adjustments and accessories are logically positioned, affording the caregiver better working conditions.

The Manatee is a bathing chair suitable for children from the age of 1 year. Not all children are alike - that is why it is important to use the measuring chart to find the correct size for your child.

Features

Depth adjustable seat

Provides depth adjustment for growth

Adjustable back and leg rests

Allows adjustments of the back and of the lower leg support with a simple pull of a strap or push of a button

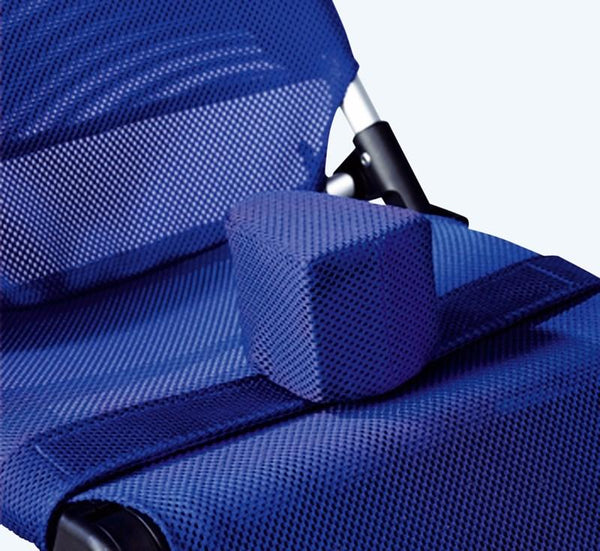

Head cushion/lateral support

Provides support and comfort for bathing children. Cushions can be used for head or torso support

Adjustable waist strap

Supports the child safely in the Manatee

Measurements

R82 manatee

	Size 0 Inch	Size 1 Inch	Size 2 Inch	Size 3 Inch
Effective seat width (A)	12¾”	12¾”	12¾”	15½"
Effective seat depth (B)	8½-9¾”	11¾-14½”	15¼-18”	15½-18¼"
Backrest height (C)	16¾”	16¾”	22½”	25"
Footrest to seat distance (D)	11”	11”	13¼”	13¼”
Seat height (E)	5½-16¾”	5½-16¾”	5½-16¾”	5½-16¾”
Folded length	40-43”	43-45¾”	-	56-58¾"
Folded height	5”	5”	53-55¾”	5"
Total mass	12 lb	12 lb	5”	15½”
Max load	110 lb	110 lb	2¼ lb	165 lb
Frames for all sizes of Manatee bath chairs:	-	-	165 lb	-
One size frames	Height adjustable frame		-
Overall width	23”	-	Basic frame	-
Frame length	38¼”	-	17”	-
Height	-	-	38½-43¼”	-
Height, minimum	14¾”	-	10½”	-
height, minimum, with chair	29¾”	-	-	-
Height, middle	17”	-	-	-
Height, middle, with chair	32¾”	-	-	-
Height, maximum	18¾”	-	-	-
Height, maximum, with chair	35¼”	-	-	-
Frame height, folded	8”	-	-	-

Accessories

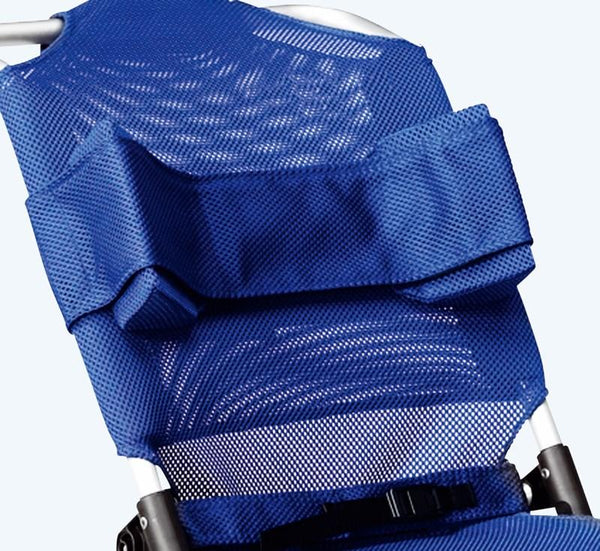

Torso strap

883025 or 883075

For correct position and support

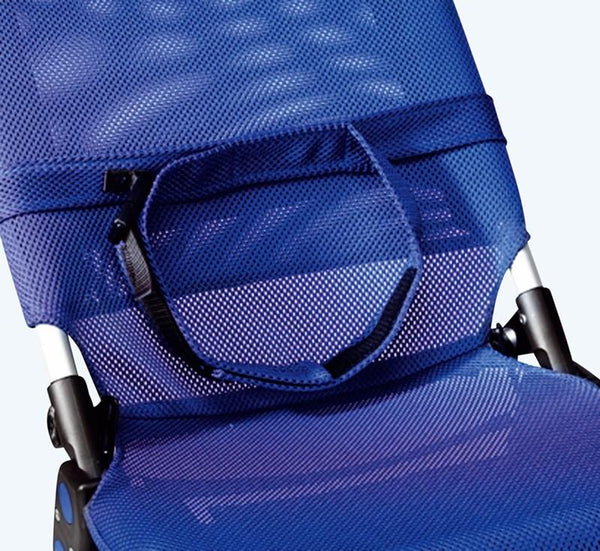

Pommel

883045 or 883095

For better positioning of the legs and prevents leg abduction

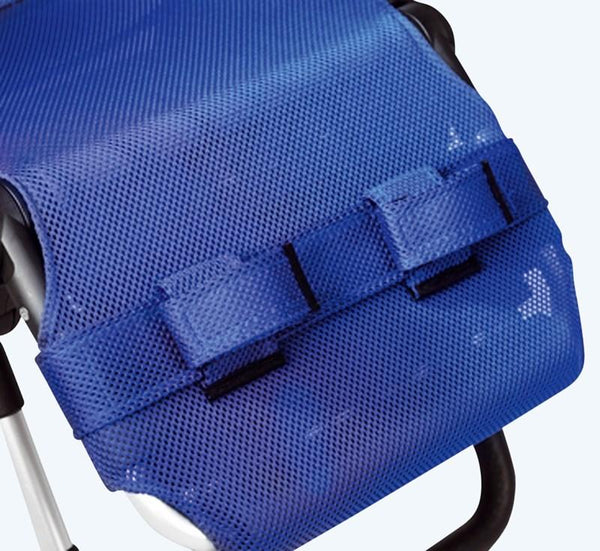

Leg supports

883055 or 883105

Provides precise control and positioning for the legs

Pads for head/lateral support
