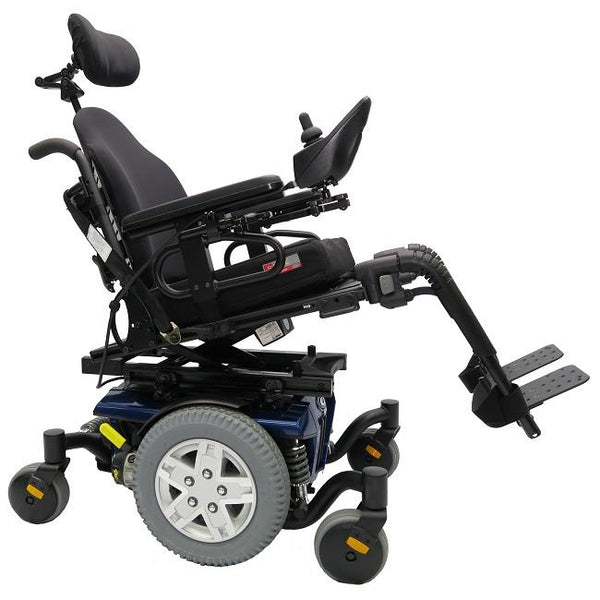

Power Wheelchair Pride Jazzy 623 Mid Wheel Drive (Swl 136Kg) [J623]

• Mid-Wheel 6® allows six wheels on the ground for maximum stability
• Compatible with TRU-Balance® Power Positioning
• Low impact OMNI-Casters (nylon, spherical-shaped castors) on front and rear prevent wheel hang-ups
• ATX Suspension (Active-Trac® with extra stability) incorporates front OMNI-Castors and semi-independent rear castor beam for enhanced performance over more varied terrain

Options

• Solid tyres
• Cup holder
• Swing-away footrests
• Swing-away joystick
• Elevating leg rests
• Oxygen tank holder
• TB2 Tilt and Synergy® Seat
• Cane/crutch holder
• Walker holder
• Contoured high-back seat
• Synergy® Seat
• Specialty Seat
• TRU-Comfort seating

Specifications

• Weight capacity - 136 kg (300 lbs.)
• Maximum speed 1 - Up to 8 km/h (5 mph)
• Ground clearance 2 - 6.35 cm (2.5”) at front castor
• Turning radius 2,6 - 7.62 cm (3”) at rear castor
• Overall length 2,6 - 50.8 cm (20”) 7
• Overall width 2,6 - 90.17 cm (35.5”) 7
• Drive wheels - 61 cm (24”)
• Front castors - 35.56 cm (14”) (pneumatic)
• Rear castors - 15.25 cm (6”) solid OMNI-casters
• Suspension - Active-Trac® ATX Suspension
• Drivetrain - Two-motor, Mid-Wheel 6®
• Braking system - Intelligent braking (electronic, regenerative disc brakes)
• Standard electronics - 75 amp, Dynamic Shark controller
• Standard seat - high-back seat
• Specialty controls - Yes
• Battery charger - Off-board, 8 amp
• Per-charge range 1,4 - Up to 25.6 km (15.9 miles)
• Battery requirements 3 - (2) 12 volt deep-cycle
• Battery size (largest) - 55 AH
• Battery weight 5 - 17.7 kg (39 lbs.) each
• Base weight - 62 kg (137.5 lbs.) (without batteries)
• Standard seat weight - 20 kg (44 lbs.) (high-back)
• Std. seating dimensions - 45.7 cm x 45.7 cm (18” x 18”)

1. Varies with base model, user weight, terrain type, battery amp hour rating (AH), battery charge, battery condition, motors, controller type, tyre type, and tyre condition. This specification is subject to a variance of +10%, -5%.
2. Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.
3. AGM or gel cell type required.
4. Tested in accordance with ANSI/RESNA, WC Vol 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5. Battery weight may vary based on manufacturer.
6. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
7. Without foot riggings.
