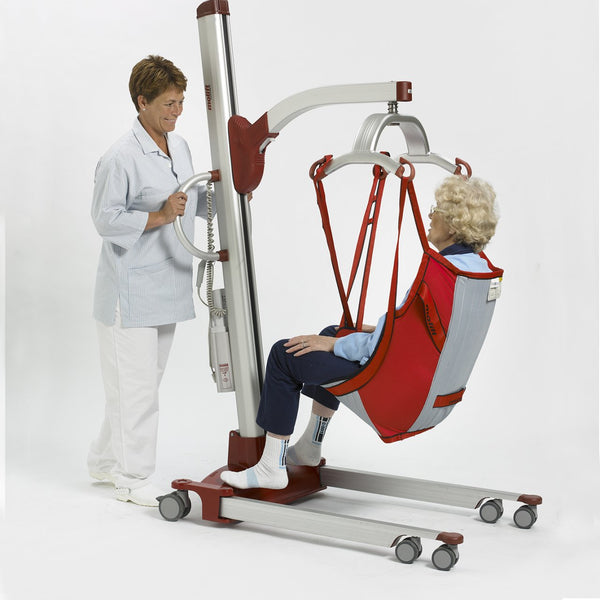

Molift Partner 255 provides an ideal solution for hoisting with high complexity situations in acute and critical care areas in both hospitals and care facilities. With an excellent hoisting range: 37–179 cm (14.5–70.4”) the Molift Partner 255 allows easy hoisting from the floor as well as high surfaces. The straight vertical column in combination with the fixed sling bar provides excellent stability and maintains the user at a good distance from the column.
Stability, manoeuvrability and hoisting capacity
With a total weight of 42.5 kg (94 lbs) Molift Partner 255 is one of the lightest in its category. Combined with excellent construction design and wheel solution it becomes very easy to manoeuvre with a safe working load of 255 kg (562 lbs).
Equipped with environmentally friendly NiMh-battery.
Technical Information
| Weight |
Regular: 42.5 kg |
| Length |
128.5 cm |
| Width chassis/legs outer |
69 cm |
| Width open legs inner |
106,5 cm |
| Leg height |
6/11,5 cm |
| Battery |
NiMh 26.4 V – 2.2 Ah |
| Battery charge time, hours |
3 |
| Hoisting height |
39–168 cm |
| Hoisting Speed |
3 cm/sek |
| Hoisting interval |
129 cm |
| Rated performance |
50 hoists at: 75 kg and 500 mm |
| Service software |
Included |
| Maximum user weight |
255 kg |
| Material |
Aluminium, steel |
Cleaning
Can be wiped off. Clean/disinfect the product using a standard non-abrasive cleaning agent with a pH between 5 and 9, or with a 70% disinfectant solution.
Variants
| Molift Partner 255 | Item no. |
|---|---|
| - Standard | M13000 |
| - Low base | M13050 |
| - With Support arms | 13100 |
| - Standard with scale | 13001 |
| - Low base with scale | 13051 |
| - With Support arms and scale | 13101 |
Accessories
8-point sling bar
| Description | Item no. |
|---|---|
| Molift 8-point suspension | 2140002 |
Molift Stretcher MRI
| Description | Item no. |
|---|---|
| Molift Stretcher MRI | 2150108 |
Molift RgoSling Fabric Stretcher
| Description | Item no. |
|---|---|
| M | 1721520 |
| XL |
1721540 |
4-point sling bar
| Description | Item no. |
|---|---|
| M | 1330060 |
| L | 1330061 |
Weight scale arm incl. Scale excl sling bar
| Description | Item no. |
|---|---|
| Weight scale arm incl. Scale excl suspension | 1331002 |
Molift Battery Charger
| Description | Item no. |
|---|---|
| Battery Charger | 1340100 |
